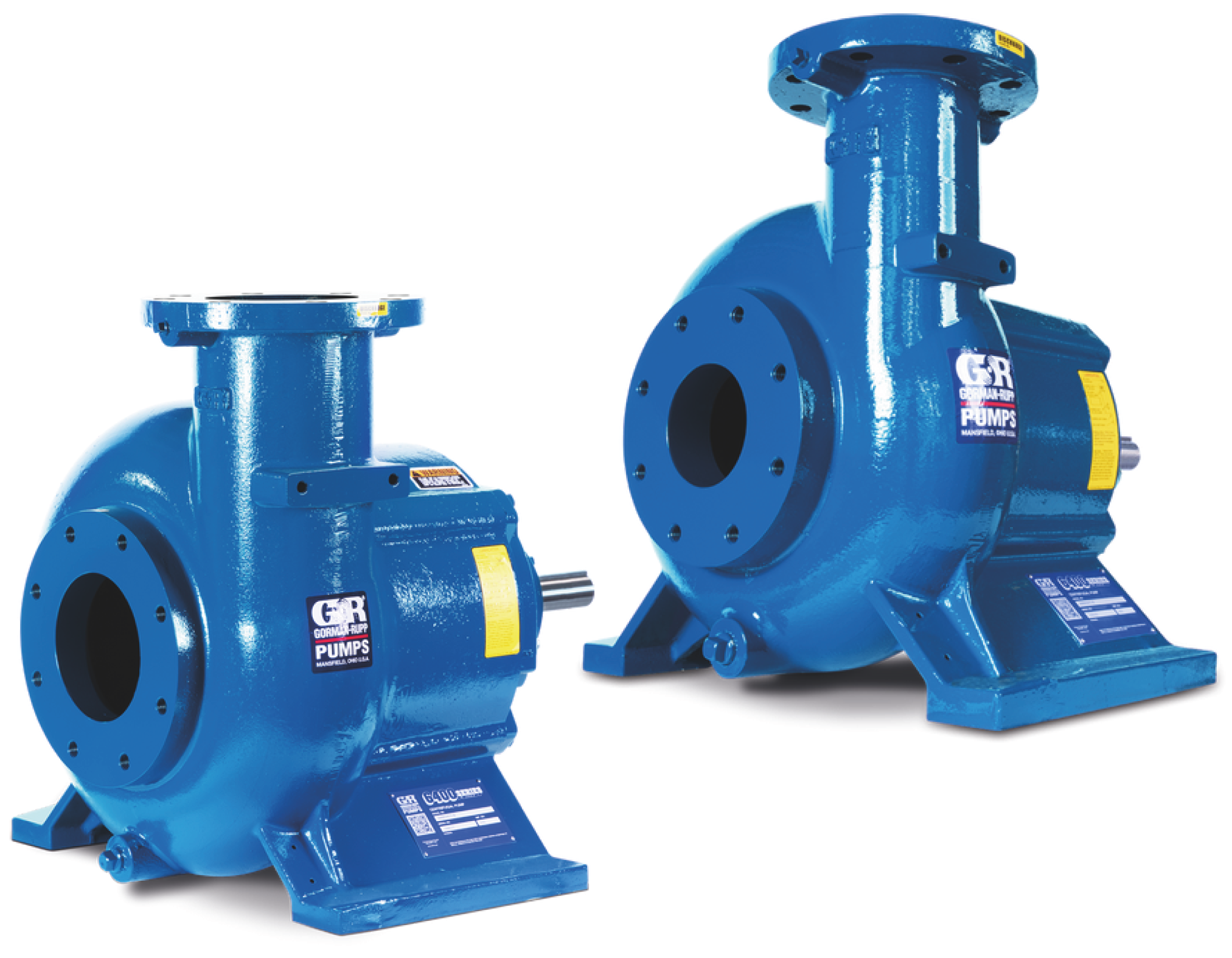

Gorman-Rupp New 6400 Series™

Standard semi-open and Vortex impeller designs

The Gorman-Rupp 6400 Series™, where cutting-edge design meets real-world demands.
This new series is engineered to meet the toughest challenges across various industries, including wastewater treatment, construction, mining, and more.

6400 Series™ Advantages

Solids handling capability up to 4” spherical solids
5-year limited warranty provides peace of mind
Service parts readily available for fast response
Competitive performance Variable options
Many shared components with Super T Series pumps including footprint
Low Net Positive Suction Head (NPSH) required

Download de 6400 Serie™ brochure

Belangrijkste toepassingen van de 6400 Series™

Wastewater Treatment

Influent Equalization
Primary Sludge
Return / Waste Activated Sludge
Effluent
Dewatering Feed
Sludge Loading
Flooded Suction Storm Water

Industrial Plants

Contaminated liquids
Paint Slurry
Washdown pit
Severe process applications
Sludge Transfer
Industrial Wastewater
Centrifuge feed
Breweries
Slaughter

Construction and Open Pit Mines

Quarry Wash Plants
Tire Washing
Dust Control
De-watering systems
HDD Drilling Fluid Transfer

Agriculture

Lagoon Systems
Manure Pits
Agricultural Waste
Food Processing
Manure WW treatment
Liquid Fertilizer

6400 Series™ Lineup

Model overview

Download de 6400 Serie™ brochure

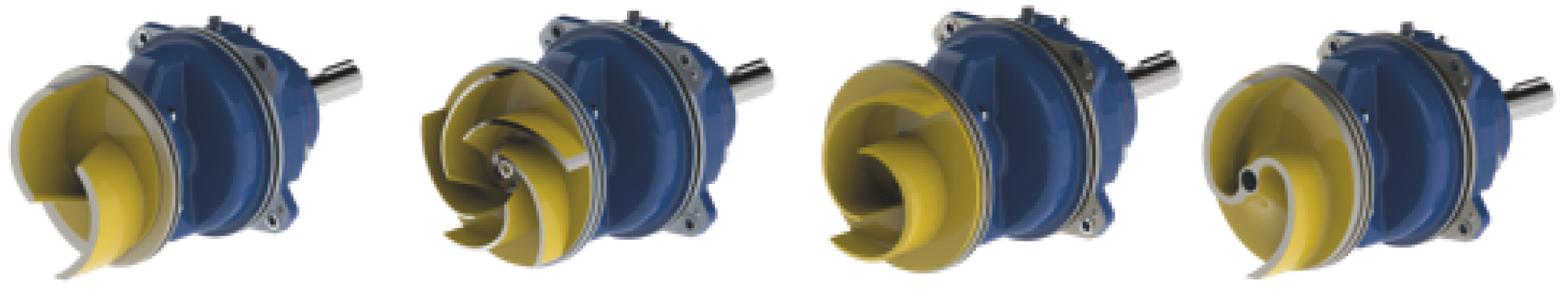

6400 Series™ Lineup Standard End Suction Pump

6400 Series™ Lineup Standard End Suction Pump

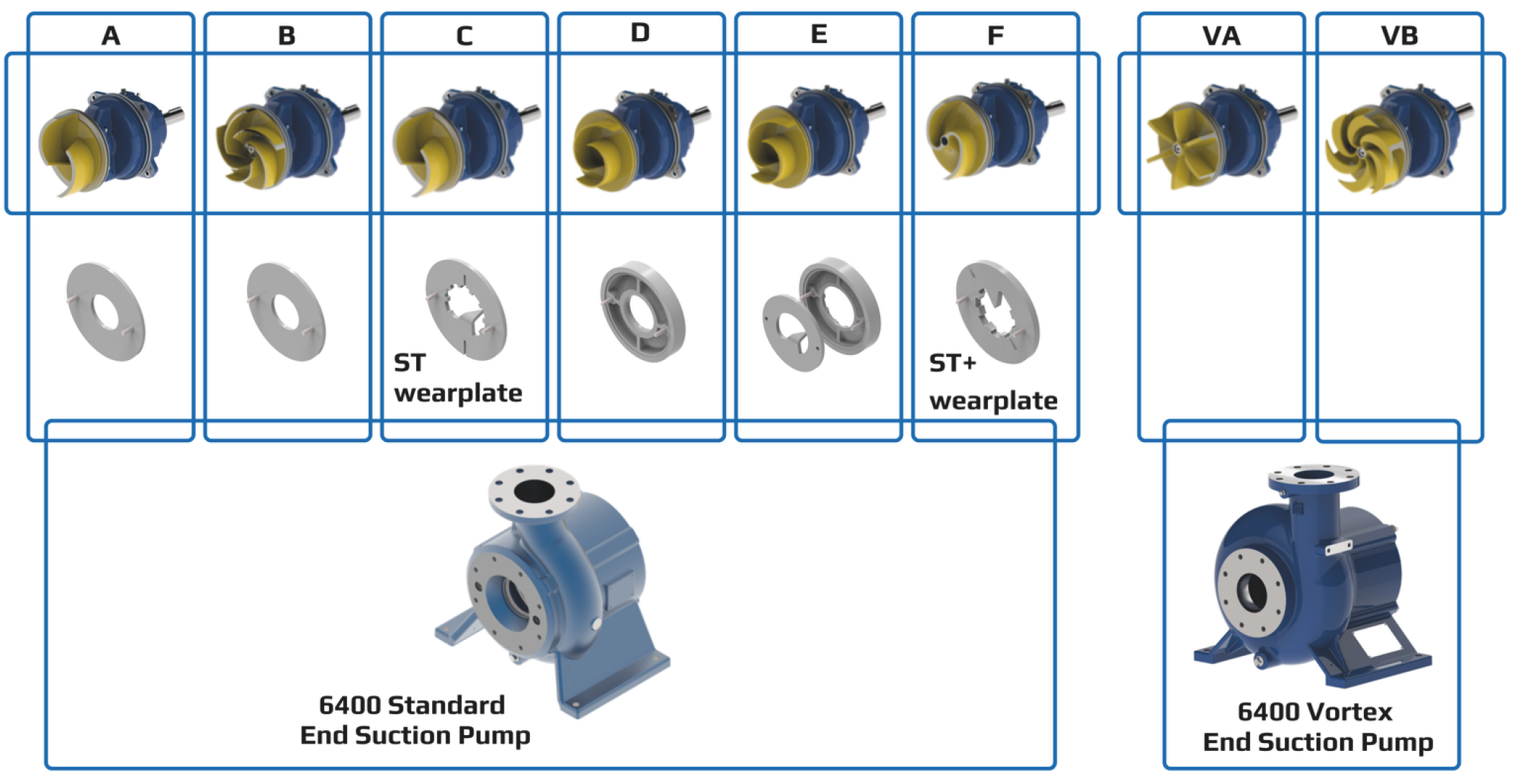

6400 Series™ Rotating Assembly Chart

A-version Basic version of the 6400 series™, solids-handling trash pumps
B-version xxxx
C-version Deals with tough solids applications with ST wearplate
D-version High efficiency version of the 6400 series™ pumps
E-version High efficiency version with ST wearplate
F-version A New era in solids-handling technology for extreme-duty applications

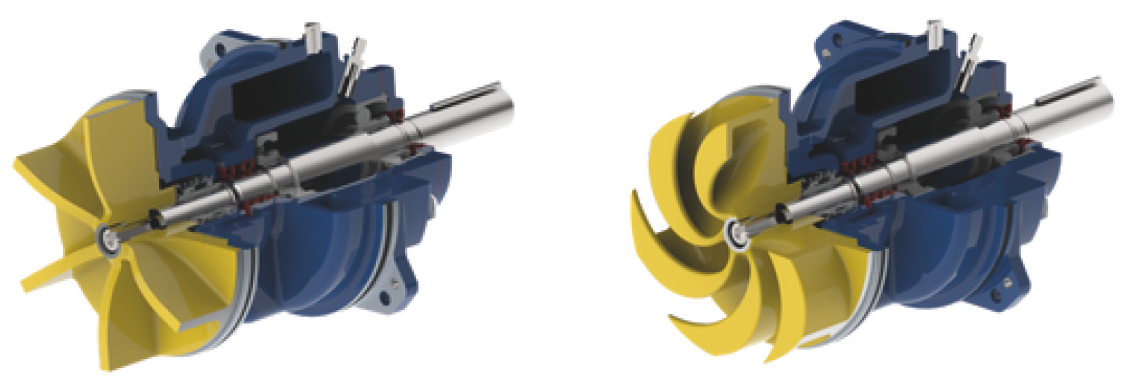

VA-version Basic version of the vortex impeller for extra heavy-duty applications
VB-version Stagger-wing vortex impeller for higher discharge pressure

6400 Series™ Common Accesories

High temperature shut down kit (145F)
Suction & discharge gauge kit Impeller trims
Drain kit
Spare parts kit
Custom Seal Options including optional Elastomers (EPDM, Neoprene, AFLAS-TFE, Viton®)

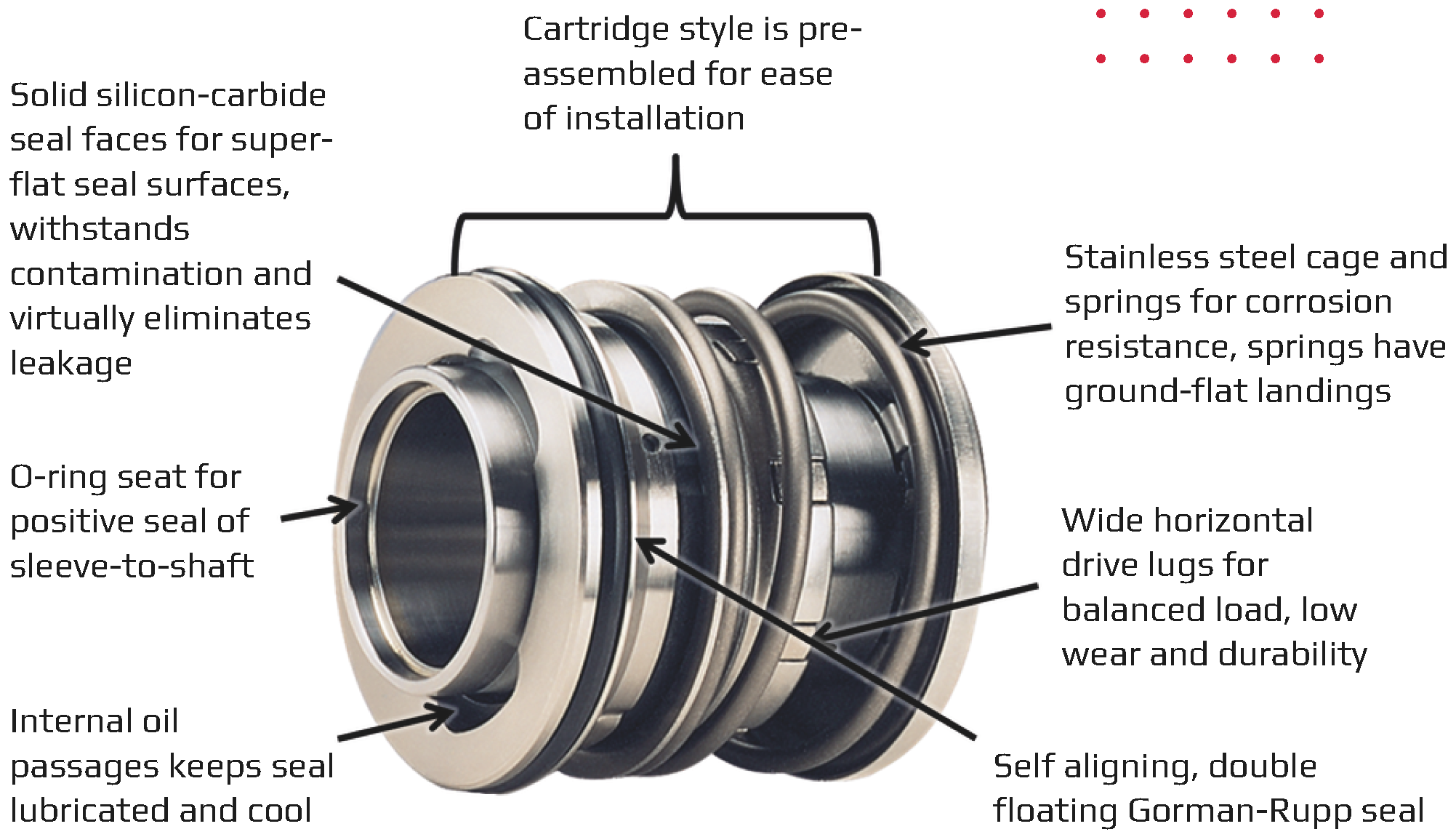

6400 Series™ details that make the difference!

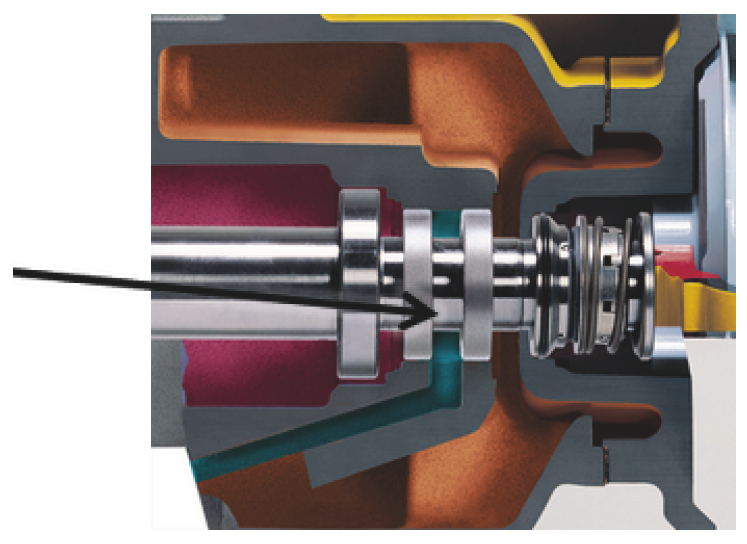

Atmospheric barrier with two lip seals

Separates the bearing and seal oil chambers, minimizes any possibility of oil exchange
The atmospheric vent provides external visual monitoring of the lip seal condition, which in turn, provides extra protection to bearings and mechanical seal

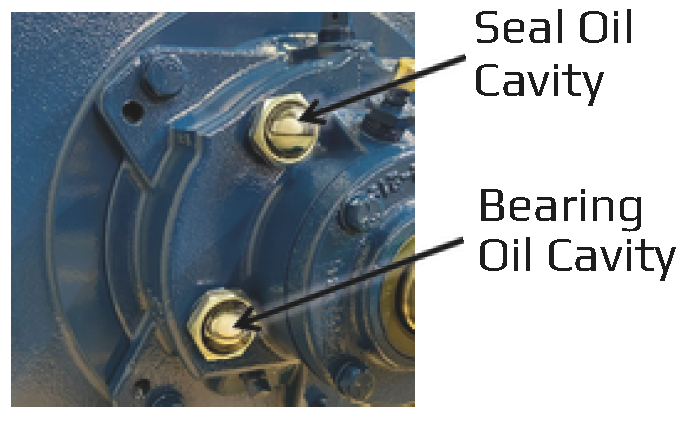

Sight glasses provided for seal and bearing cavity

Fast external monitoring of seal and bearing oil level and condition, viewable from the side of the pump
No need for tools or a dipstick

Download de 6400 Serie™ brochure

6400 Series™ Common Accesories

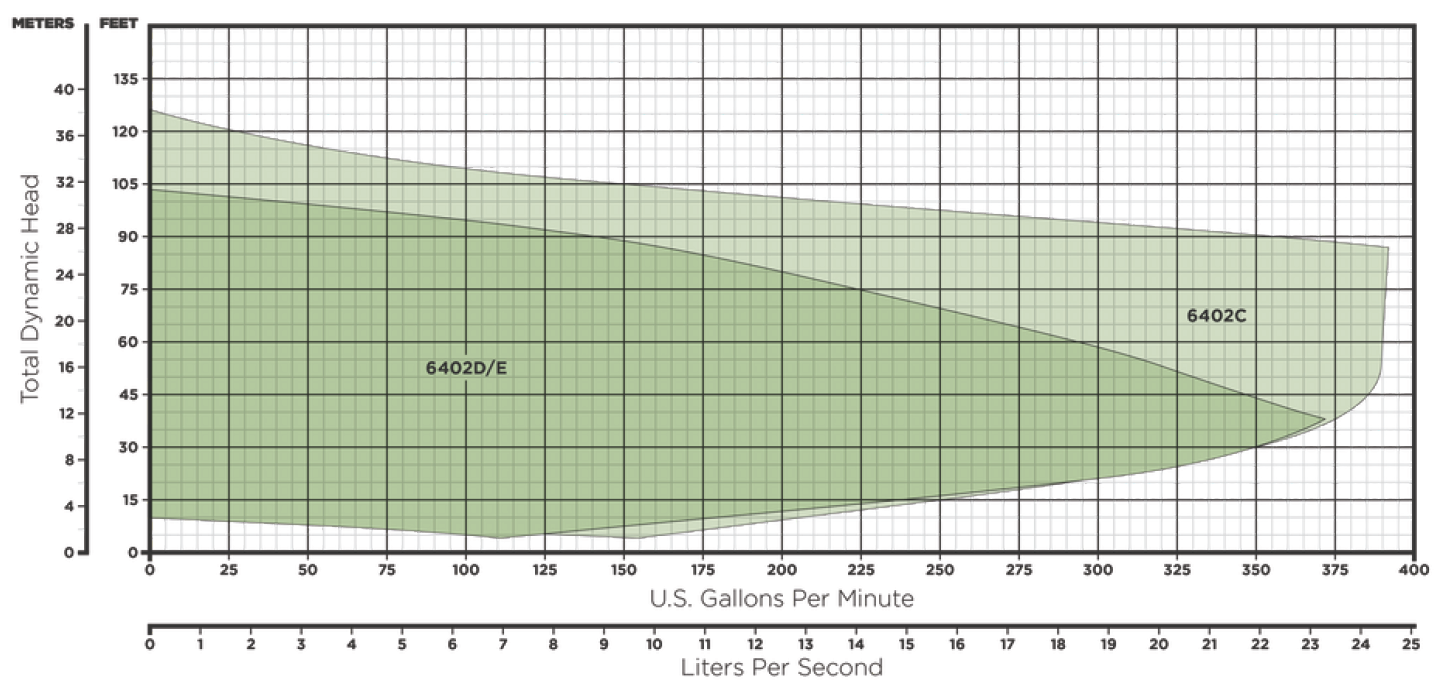

6402 Series Performance Data

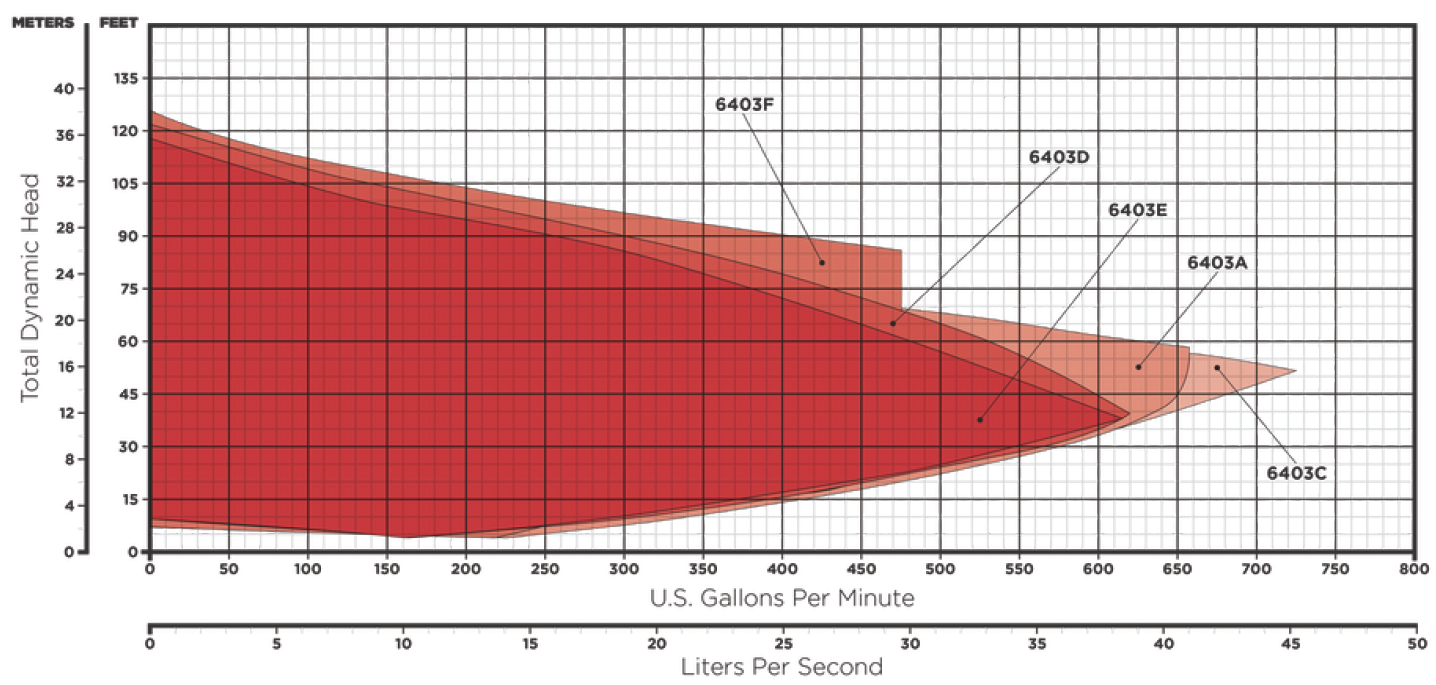

6403 Series Performance Data

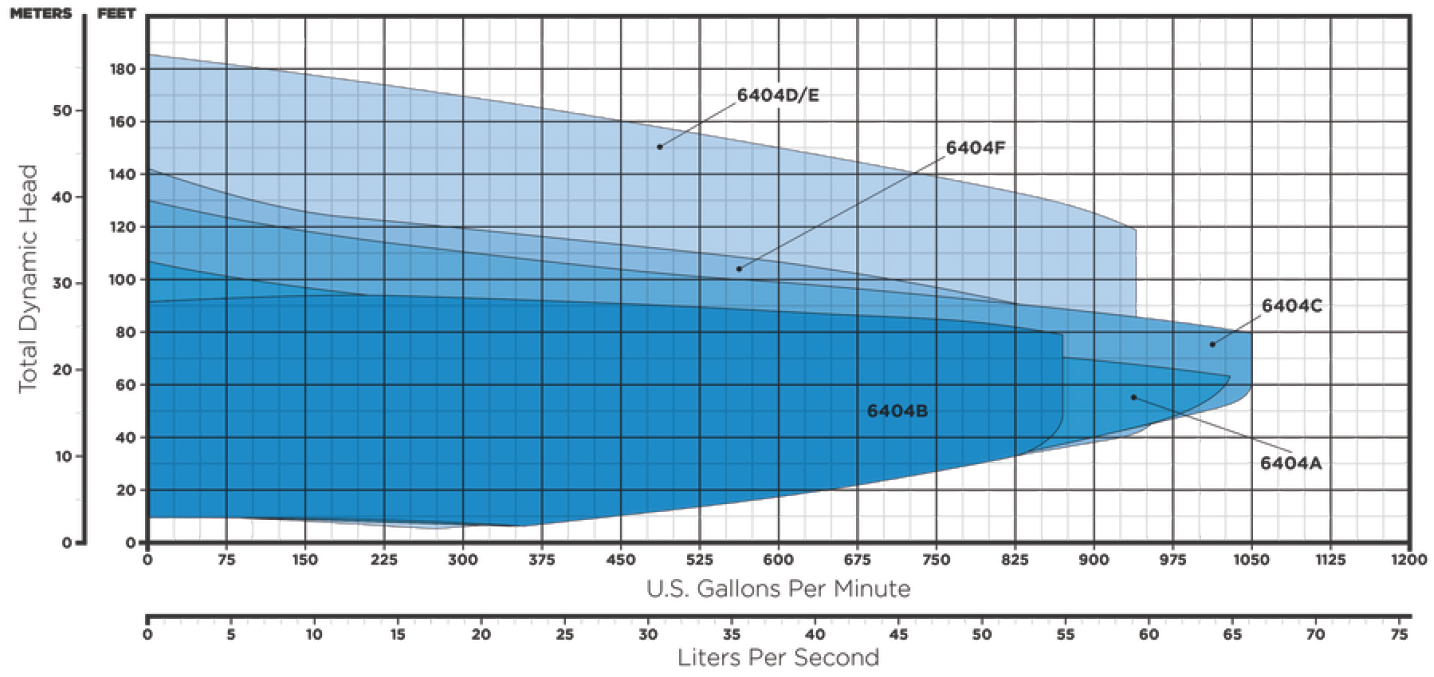

6403 Series Performance Data

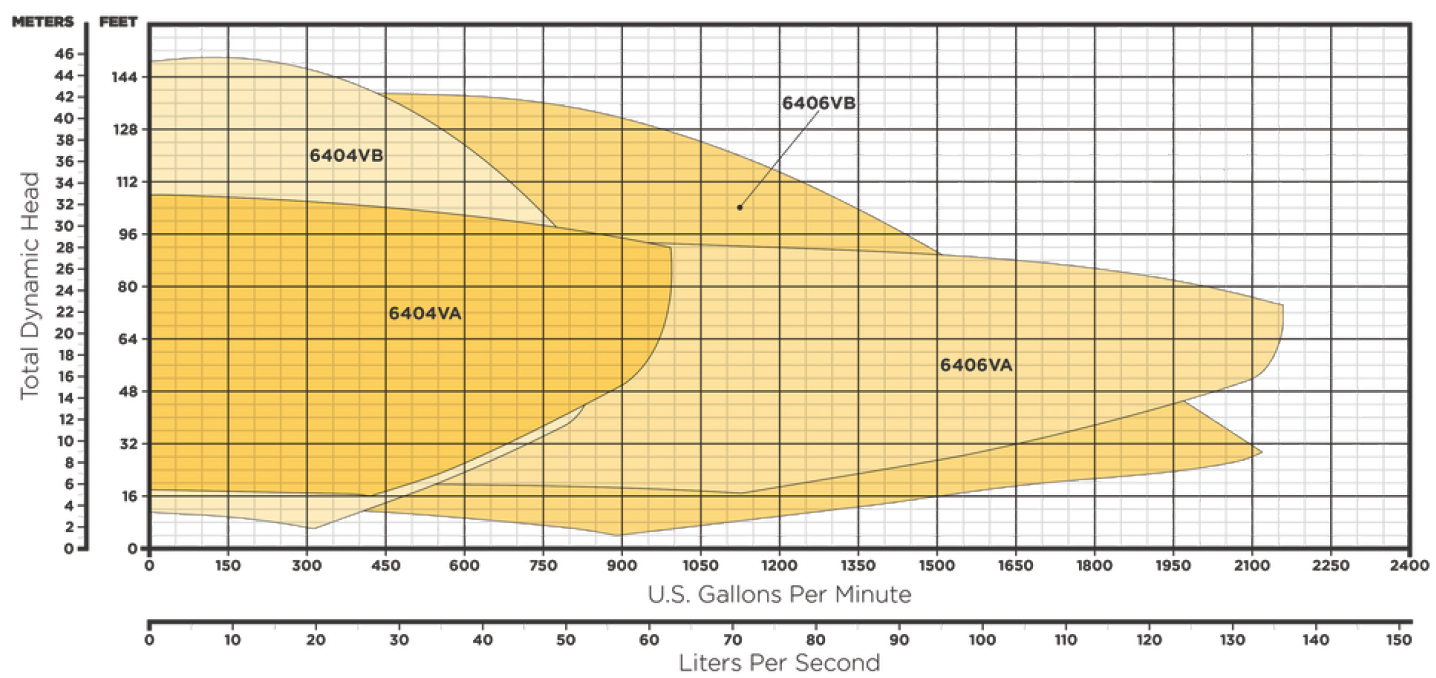

6400 VA/VB Series Performance Data

Download de 6400 Serie™ brochure
